Single Axis Sensor Description

• Measures acceleration and senses vibration in all types of vehicles, airframes and other structures

• Emits a stronger signal than competing accelerometers, giving more precise measurements

• Drifts less than competing accelerometers, ideal for internal navigation systems

• Very low Cross Axis Sensitivity means more accurate sensing

• Self-powered, ideal for small devices/vehicles with little to no power available

• Compact and lightweight, can sense vibrations on small and lightweight structures with minimal damping effects

• Extremely durable, can withstand enormous forces

Specifications

• Response Time: < 100 nS

• Voltage Sensitivity: 0.37 mV/g

• Cross Axis Sensitivity: <3%

• Parallel Resistance: >100MΩ

• Isolation Resistance: >100MΩ

• Capacitance: 1.8 nF

• Operating Temperature Range: -20°C / +100°C

• Maximum Acceleration: 250,000 G

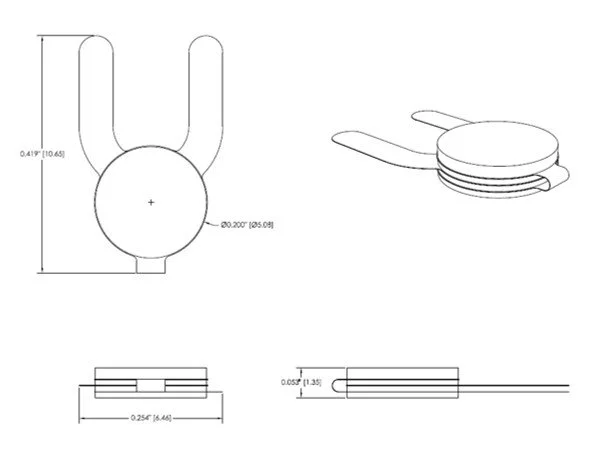

Dimensions (excluding tabs)

• Thickness: 1.35mm

• Diameter: 5.3mm

• Mass: 0.22grams
